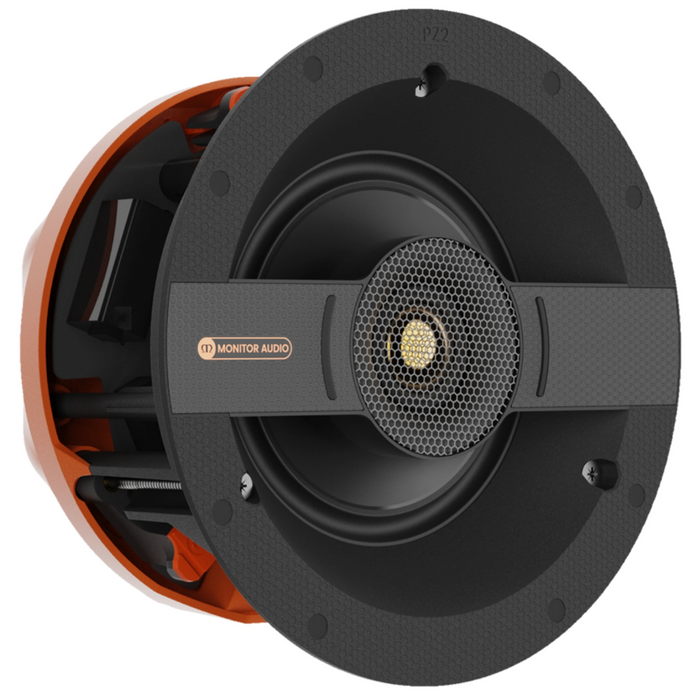

Monitor Audio Creator Series C1S In-Ceiling Small Speaker
Effortlessly blend high-quality audio into any room with the Monitor Audio Creator Series C1 In-Ceiling Small Speaker.
This small Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 171 mm, revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitment.
Optional square grille can be used with this model.
British High-Fidelity Architectural Sound Redefined
The Creator Series re-writes the rules of custom installation. A smart, tiered range of high-performance, installer-friendly in-ceiling and in-wall loudspeakers that delivers better sound for customers, and enhanced flexibility and clarity for installers.
The application of key Monitor Audio acoustic technologies more usually found in our premium standalone loudspeakers ensures lifelike, pristine sound, while innovative features and a comprehensive, clearly defined range make for hassle-free installation. If you thought you knew custom installation, think again; Creator Series redefines British high-fidelity architectural sound.
Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1" (25mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Tri-Grip II
Tri-Grip II is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.
Quik-Link

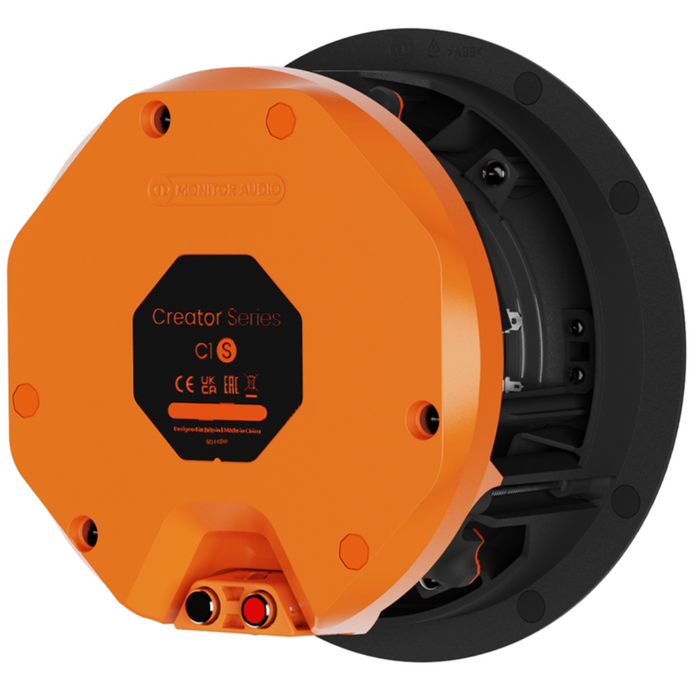

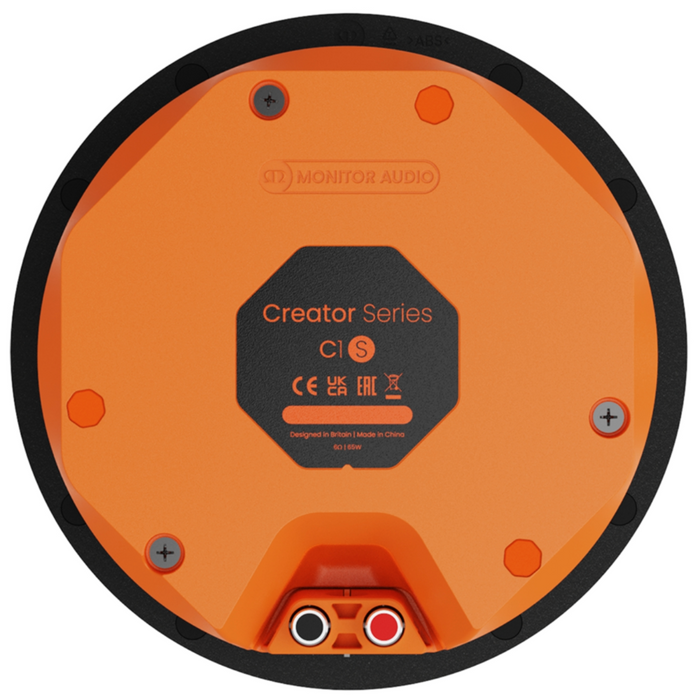

With Quik-Link you can make cable connections up the ladder at pre-installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It’s that easy.
The in-ceiling loudspeaker sits at the heart of architectural sound; its ability to fill a room with wonderfully clear sound while remaining virtually invisible delivers on the key dream of a custom installation audio system.
Specifications
Small
- Drive Units Complement: 1 x 5” C-CAM bass driver, 1 x 25mm C-CAM tweeter
- Nominal Impedance: 8 Ohms
- Amplifier Requirement: 25 — 100 W
- Continuous Power Handling: 50 W
- Sensitivity (2.83v @ 1m): 84 dB
- Cut Out Size: Ø 171 mm
- Mounting Depth: 99 mm
- Dimensions (Ø x D) inc. grille: Ø 201 x 103 mm (Ø 7 15/16 x 4 4/16”)
- Weight: 1.4 kg (3 lb 1 oz)
