Audio-Technica AT-VM95 SP/H Moving Magnet Cartridge

by Audio-Technica
Write a review
$179.00 - $179.00
$179.00
$179.00 - $179.00
$179.00

Audio-Technica AT-VM95 SP/H Moving Magnet Cartridge

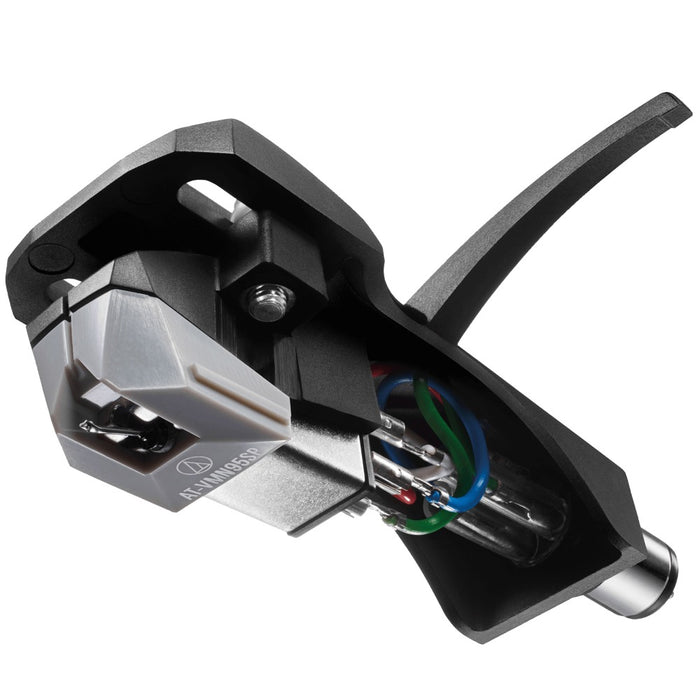

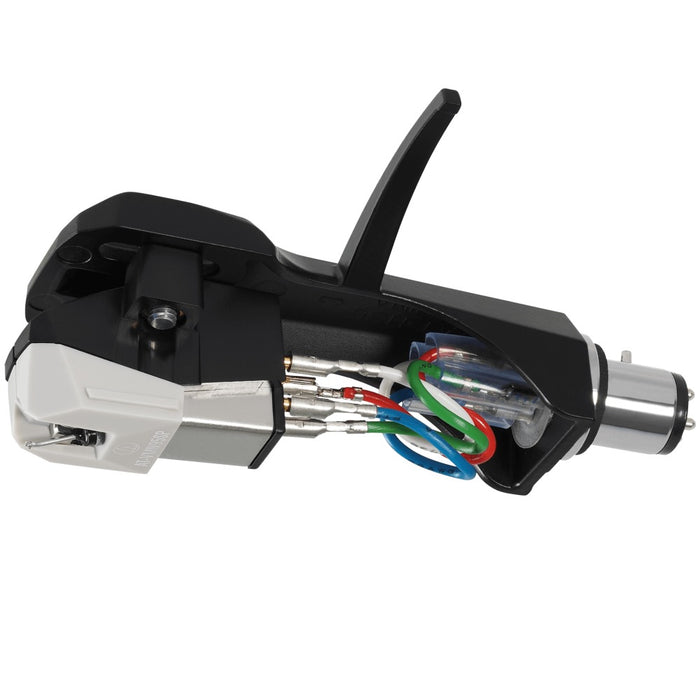

The AT-VM95SP/H combo kit includes the AT-VM95SP dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Features

  •  Capable of playing 78 RPM records
  •  VM dual magnet cartridge with 3.0 mil conical stylus
  •  Aluminium cantilever
  •  Specially wound coils increase output voltage
  •  Durable low-resonance polymer housing
  •  Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
  •  Compatible with any AT-VMN95 replacement stylus
  •  Universal ½"-mount headshell for 4-pin turntable cartridges
audio-technica at-vm95 sp/h moving magnet cartridge melbourne hi fi



 Specifications
Frequency Response

20-20,000 Hz
Channel Separation

NA
Vertical Tracking Force

4.5-5.5g (5.0g standard)
Stylus Construction

Bonded round shank
Recommended Load Impedance

47,000 ohms
Output

2.7 mV (1 kHz, 5 cm/sec.)
Channel Balance

1.5 dB (1 kHz)
Stylus Shape

3.0 mil conical
Cantilever

Aluminium pipe
Mount

Half-inch
Replacement Stylus

AT-VMN95SP
Coil Impedance

3.3 k ohms (1 kHz)
DC Resistance

485 ohms
Load Capacitance

100 to 200 pF
Coil Inductance

550 mH (1 kHz)
Vertical Tracking Angle

23°
Dimensions (Cartridge)

17.2mm H × 18.9mm W × 28.3mm D
Weight (Cartridge)

6.1g
Dimensions (Cartridge & Headshell)

21.2mm H × 21.4mm W × 62.4mm D
Weight (Cartridge & Headshell)

15.5g
Accessories Included

Two 11mm installation screws, two 8mm installation screws, two washers
