JBL Stage 2 260CSA 6.5 inch Angled In-Ceiling Speaker

As an industry leader in audio technology, JBL presents the Stage 2 260CSA 6.5 inch Angled In-Ceiling Speaker. With a sleek design and advanced audio engineering, this speaker delivers unparalleled sound quality. Experience immersive, crystal-clear audio in any room with the innovative angled design for optimal sound dispersion.

2-way 6.5in (166mm) Angled In-Ceiling Loudspeaker

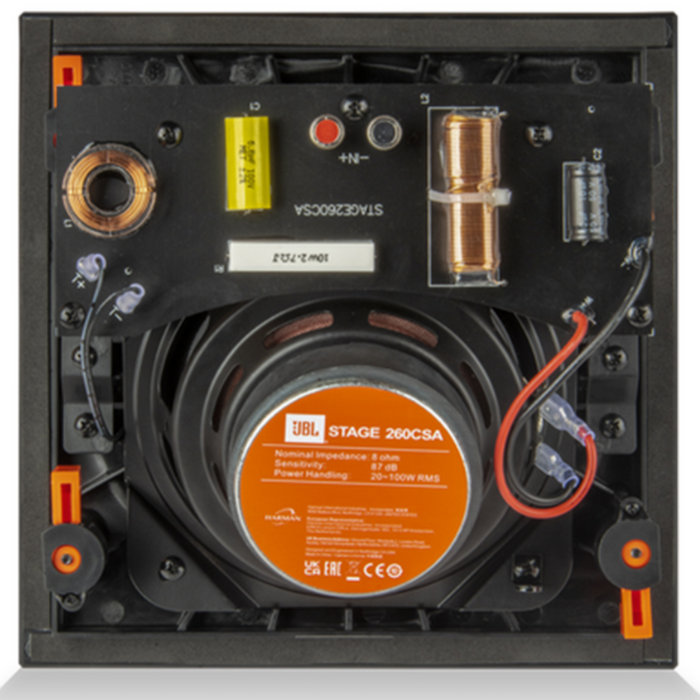

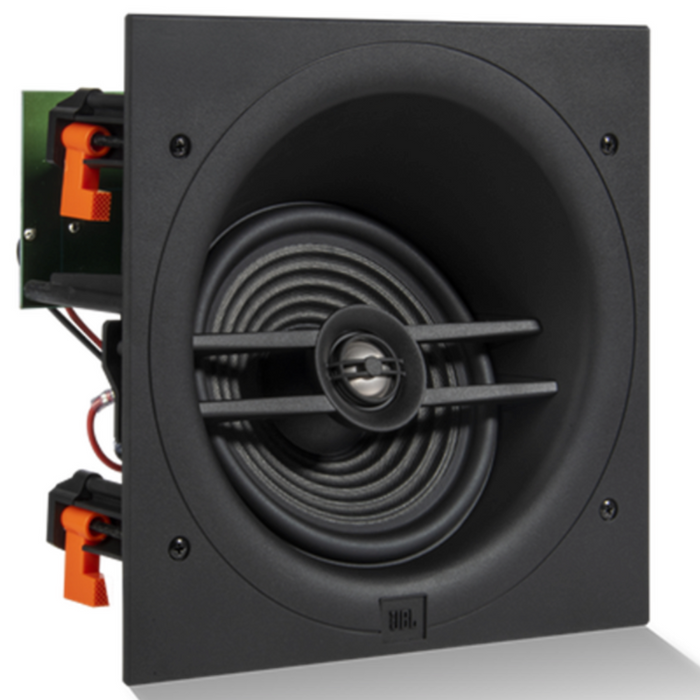

The angled design of the Stage 260CSA allows for accurate aiming of the 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.

Features

• Angled Baffle allows for accurate aiming towards the listening area
• 1" (25mm) Aluminum dome with acoustic lens waveguide
• 6.5" (165mm) Polycellulose cone woofer
• Rigid baffle design with acoustic smoothing for improved transducer integration
• XL-2 installation system compatible with up to 2" (50mm) thick wall / ceiling material
• Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Specifications

• High Frequency Transducer: 1" (25mm) Aluminum dome with Acoustic Lens
• Low Frequency Transducer: 6.5" (165mm) Polycellulose cone woofer
• Recommended Amplifier Power (Full Range): 20-100W RMS
• Frequency Response: 50Hz-25kHz (-6dB on-axis)
• Sensitivity (2.83V@1m): 87dB
• Nominal Impedance: 8ohm
• Crossover Frequency: 2800Hz
• Inputs: Nickel-plated spring-loaded connectors
• Grille Dimensions: H 9.8in (248mm) x W 9.8in (248mm)
• Cutout Dimensions: H 8.6in (219mm) x W 8.6in (219mm)
• Mounting Depth: 5in (127mm)
• Product Weight (Kg): 2.2Kg
• Shipping Carton Dimensions: L 12in (306mm) x W 12in (306mm) x H 6.2in (158mm)
• Shipping Carton Weight: 6.66lbs (3.02Kg)
