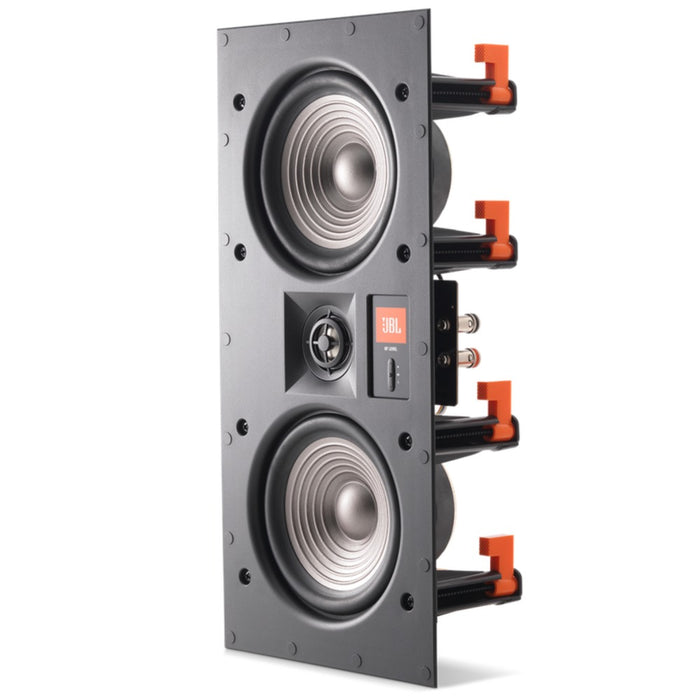

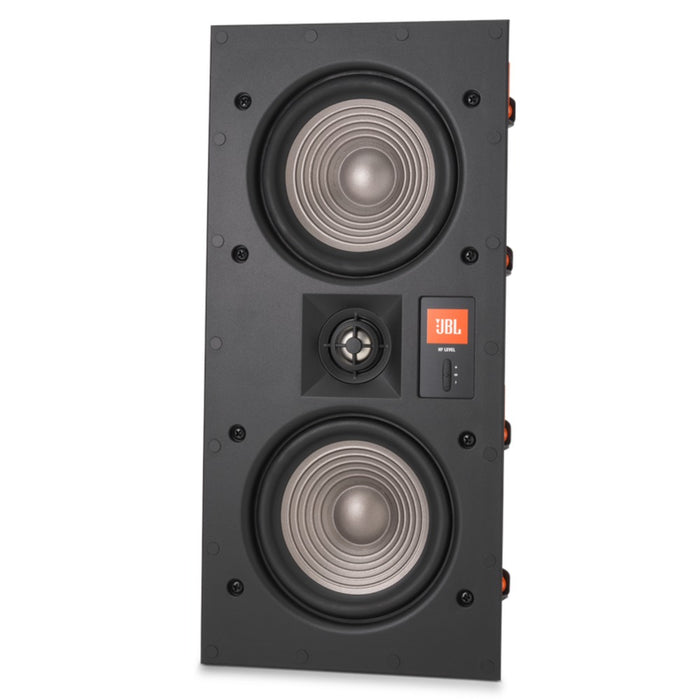

JBL Studio 2 55IW In-Wall Speaker

5.25 Inch In Wall Loudspeaker

The JBL Studio 2 architectural series premium loudspeakers represent best in class architectural audio. PolyPlas® woofer cones, CMMD@ lite tweeter and advanced crossover networks as well as pivoting, adjustable-level tweeter all compensate for any acoustical room conditions. The JBL High Definition Imaging (HDI) waveguide ensures that the loudspeaker fills the room with cinema-quality sound The JBL Studio 2 are suitable for installation in any wall or ceiling up to 2" thick.

Features

• Sound Inspired by JBL’s legendary M2 Master Reference Monitor
• Paintable, nearly invisible zero-bezel magnetic grille
• Superior XL-2 installation bracket
• Pivoting Tweeters with audio level adjustment

Specifications

• Tweeter: 1" (25mm) Pivoting CMMD® Lite Tweeter
• Woofer: Dual 133mm ( 5.25”) Polyplas® Woofer
• Frequency Response: 40Hz – 20kHz
• Recommended Amplifier: 120W
• Nominal Impedance: 8 Ohms
• Sensitivity:88dB 2.83V @ 1m
• Cut-out Dimensions: 359mm x 163mm)
• Grille Dimensions: 384mm x 188 mm - Paintable Grille
• Mounting Depth: 76mm
