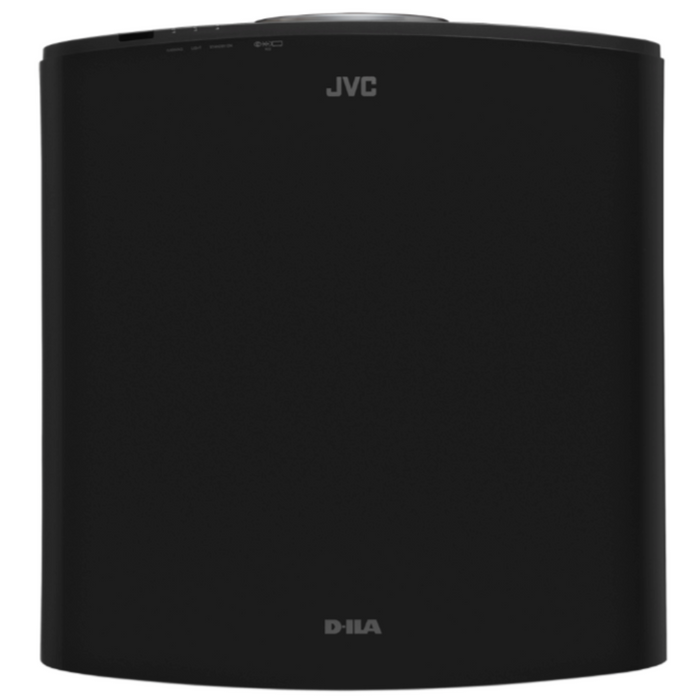

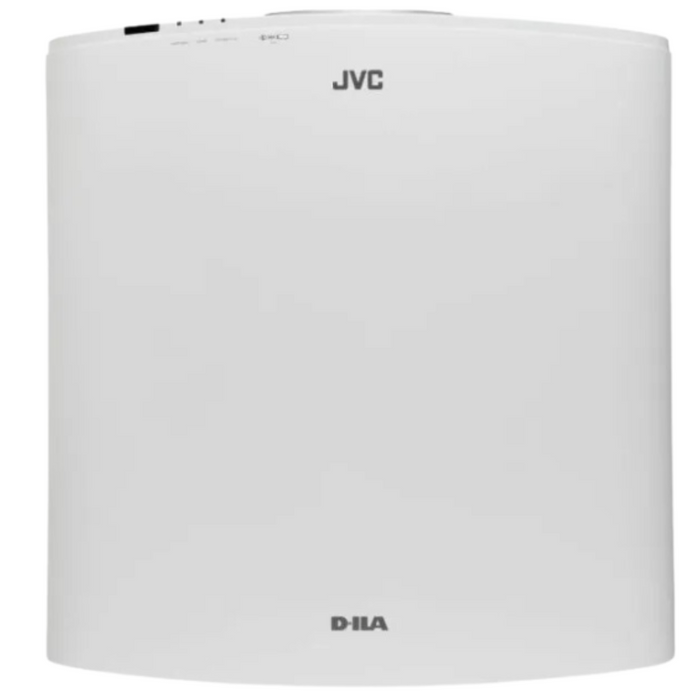

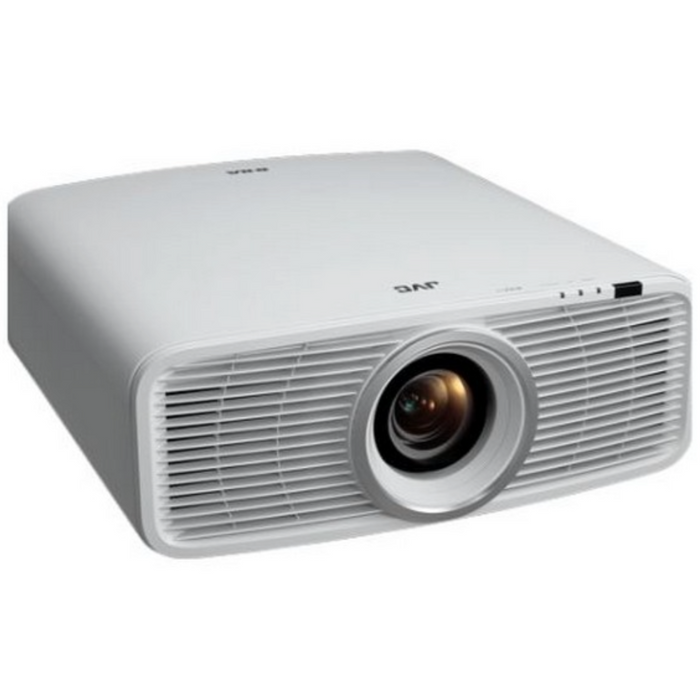

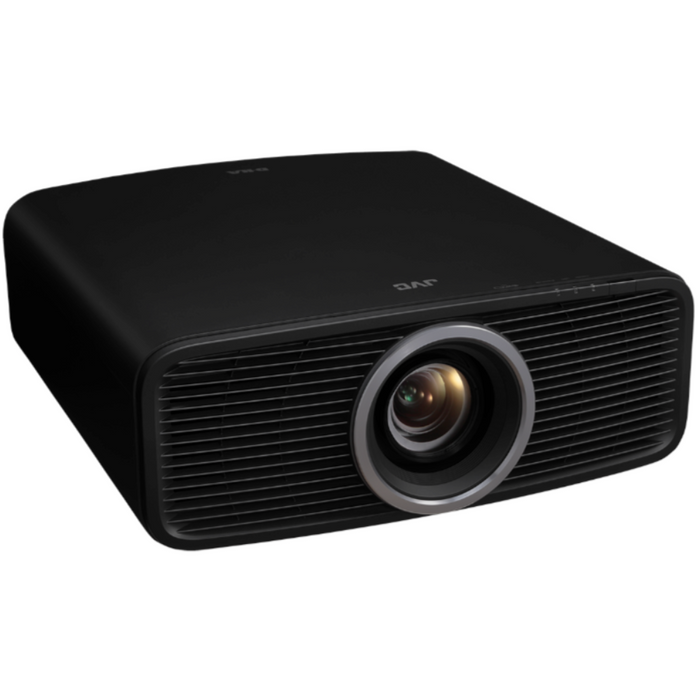

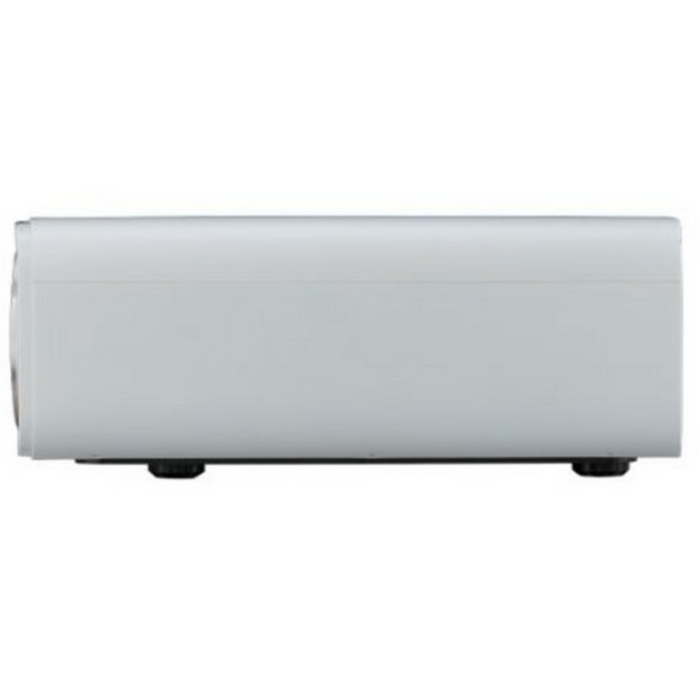

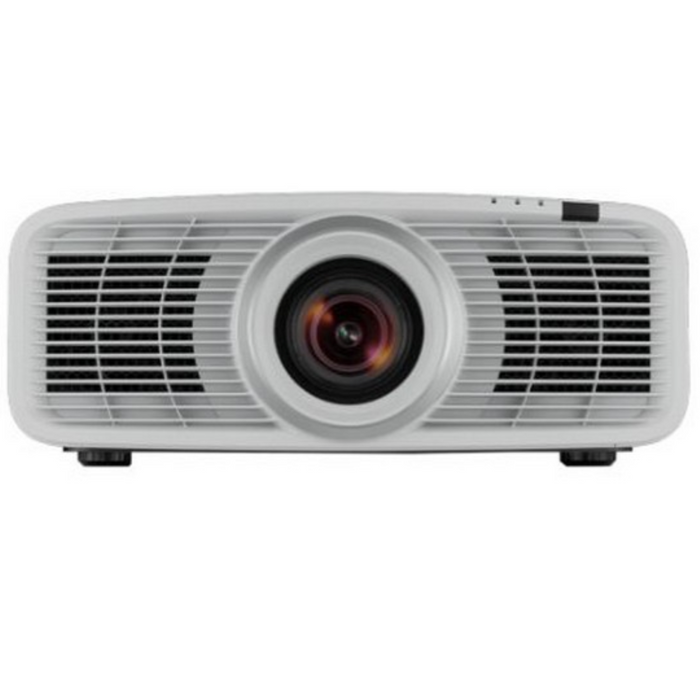

JVC DLA-NZ500 Projector

CALL FOR AVAILABILITIES.

Experience unparalleled cinematic quality with the JVC DLA-NZ500 Projector. Boasting high resolution and a wide color gamut, this projector displays stunningly vivid images. The 1800 lumens and 400,000:1 contrast ratio create a truly immersive viewing experience.

Enjoy crystal clear visuals with this top-of-the-line projector.

jvc dla-nz500 projector melbourne h ifi

Refined Sleek Design, Native 4K, BLU-Escent Laser

Discover Your Next Cinematic Journey

All Components Redesigned

The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

jvc dla-nz2700 projector melbourne hi fi

Volume Reduction

The DLA-NZ700/NZ500/RS2200/RS1200 has a dimension reduction of 35% compared to the previous DLA-NZ7/RS2100, while still incorporating a laser light source and native 4K D-ILA device.

Re-design of Air Intake and Exhaust

By placing the heat source exhaust at the rear, the potential impact of the image on the projection screen has been eliminated. This provides more flexibility for installation.

Environmental Considerations

The design of the new projector models use significantly less plastic, which also reduces transportation costs. This leads to a product that is much more environmentally friendly.

Native 4K

0.69 inch native 4K D-ILA device enhances video quality

Our proprietary 0.69inch native 4K D-ILA device has been advanced to the third generation to further enhance black details.　

High native contrast

The DLA-NZ700/RS2200 achieves 80,000:1* native contrast by simultaneously improving alignment control and pixel flatness. *: 40,000:1 for 'DLA-NZ500/RS1200'

Uniform brightness

The Manufacturing process has improved uniformity of brightness  across the entire screen, with beautiful image quality to every corner.

High Brightness and Long life

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ700 achieves a high brightness of 2,300lm and the DLA-NZ500 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

Improved Power Efficiency

The DLA-NZ700/NZ500’s brightness per watt of effective power is approximately 2 times that of the first model equipped with BLU-Escent Laser (the DLA-Z1 was released in January 2017, with a brightness of 3,000lm).

Controlling the Luminance in 101 Steps

BLU-Escent Laser can finely adjust the luminance according to the environment and preference using the Light Source Control by slider adjustment. There are a total of 101 (0 – 100) luminance control steps that can be used to make fine adjustments to match the target luminance in the environment and on the screen.

Newly Designed fully Motorized 4K Lens

Superior Resolution

Newly designed large aperture (80mm, 11groups, 15lenses) 4K compatible lens delivers full native 4K D-ILA resolution to every corner of the screen.

Installation flexibility

Fully electric (Zoom, Focus, Shift), with 70% vertical and 28% horizontal shifts for easy installation.

Ultimate Dynamic range

HDR Drastically Improves Expressive Power of Images

When it comes to reproducing the rich video information of HDR content, including the extended brightness range, BT.2020 wide color gamut and 10-bit gradation, rely on the new D-ILA projectors. Both models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the HDR10+ with dynamic metadata compatibility. The projectors’ improvements for higher brightness and contrast have helped to achieve a wider dynamic range, allowing users to enjoy an immersive experience with HDR images full of reality.

Key Features
  • ReDesign Of All Components - to achieve world's smallest. Native 4K projector
  • Fully motorised 4K Lens - Delivers superior resolution and installatipn flexibility
  • 2nd Generation Feame Adapt HDR with Deeper Black
  • Re-Design of Air Intake and Exhaust
  • Vivid Picture Mode
  • Filmaker Mode

Specifications

Device

D-ILA Technology Yes
Chip Type 0.69-inch 4K D-ILA device
Native Resolution 4096 x 2160
Number Of Chips 3
Display Resolution 4096 x 2160

Light Source

Laser Yes
Type BLU-Escent Laser Diode
Life Time (Standard Mode) 20000 hours


Brightness 2000 lm
Dynamic Contrast ∞ : 1
Native Contrast 40000 : 1
Dynamic Light Power control Yes
Modes Low,High,Balance,Off
Manual Aperture Yes
Range -15 (stops down) to 0 (opens up)
100% REC 709 Yes
Color Bit Depth 12 bit
ISFccc Certification Yes

HDR

HDR10 Yes
HDR10+ Yes
Frame Adapt HDR Yes
HLG Yes
Mastering Info Display Yes
Info data MaxCLL, MaxFALL , DML
Deep Black Tone Control Yes

Lens

Zoom 1.6 x
Throw Ratio 1.34 – 2.14 (16:9)
1.26 – 2.01 (17.9)
Diameter 80 mm
Build 15-element, 11-group.
Lens Shift Yes
Range Horizontal ± 28 %
Range Vertical ± 70 %
Motorized Zoom Yes
Motorized Shift Yes
Motorized Focus Yes
Projection Display size (diagonal) 60 – 200 inch
Memory Function Yes
Number of user presets 5
Lens Cover Yes

HDMI

HDMI Yes
Number of Inputs 2
Data Rate 32 Gbps
HDCP Version 2.3
4K60P signal input Yes
Video Signal range 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
PC Signal range 640×480, 800×600, 2048×1080, 1600×1200, 1920×1200, 2048×1536, 2560×1440
Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes Standard, Option1 , Option2  (older hardware may need to use Option1 or Option2 settings)

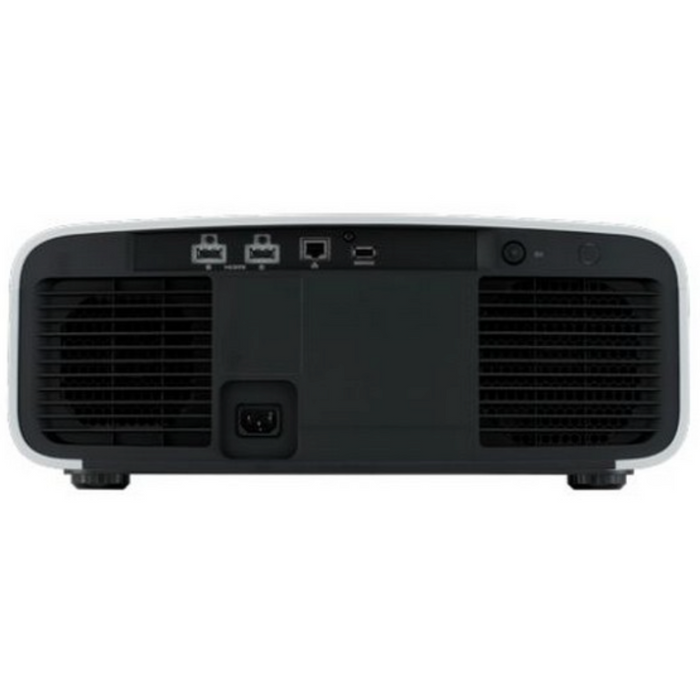

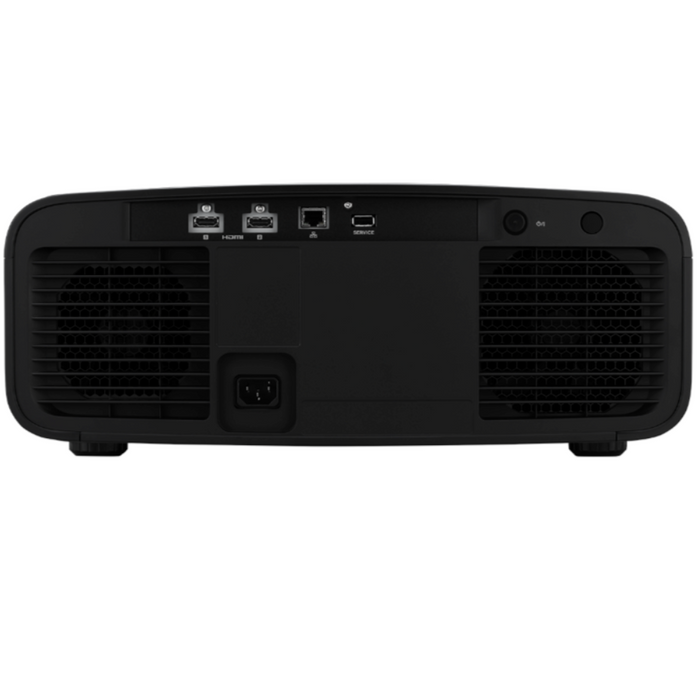

Connections

LAN Yes
Connector RJ45
Service Yes
Connector USB (Type A) for firmware update or backup

Picture Settings

Picture Modes Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1, Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
Color Temperatures 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth 12 bit
Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes
Color Management 6-Axis adjustable CMS
MPC Yes
Filmmaker Mode Yes
Auto Calibration Yes
Installation Mode Yes
Number of modes 5
Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes 4 Modes (A, B, C, D)
Control4 SDDP Yes

Power & Environment

Power Requirement AC100-240V, 50/60Hz
Projector in Use 280W
Standby Eco-mode: 0.3W
Network Standby 1.5W (LAN)
Switchover time Approx. 15 min. (To standby or networked standby; default)
Fan Noise 23 dB
Eco Mode Yes
Standby Timer Yes
Operating Temperature 5°C to 35°C
Operating Humidity 20% to 80%
Installation Angle Horizontal +/- 10 degree / Vertical +/- 10 degree
Installation Height Below 2,000 m

In the box

Remote Control Yes, RM-MH27
Quick Guide Yes
Power Cord Yes
Batteries Yes, 2 x AAA-size batteries

Dimensions & Weight

Product Dimensions (WxHxD) 17-23/32 in x 7-5/32 in x 18-7/8 in
Product Weight 32.2 Lb

General Editing Note

General Note: Simulated pictures. The values for weight and dimensions are approximate. E.&O.E. Design and specifications subject to change without notice.
