Monitor Audio CP-IW260X In-Wall Speaker

Name: Monitor Audio CP-IW260X In-Wall Speaker
Brand: Monitor Audio
SKU: MON-IW260X-IW-SPK-WHT
Price: 1600.0 AUD
Availability: InStock

by Monitor Audio

Write a review

Save $49.00

$1,649.00

$1,649.00 - $1,649.00

$1,649.00

$1,600.00

$1,600.00 - $1,600.00

$1,600.00

Quantity

Description

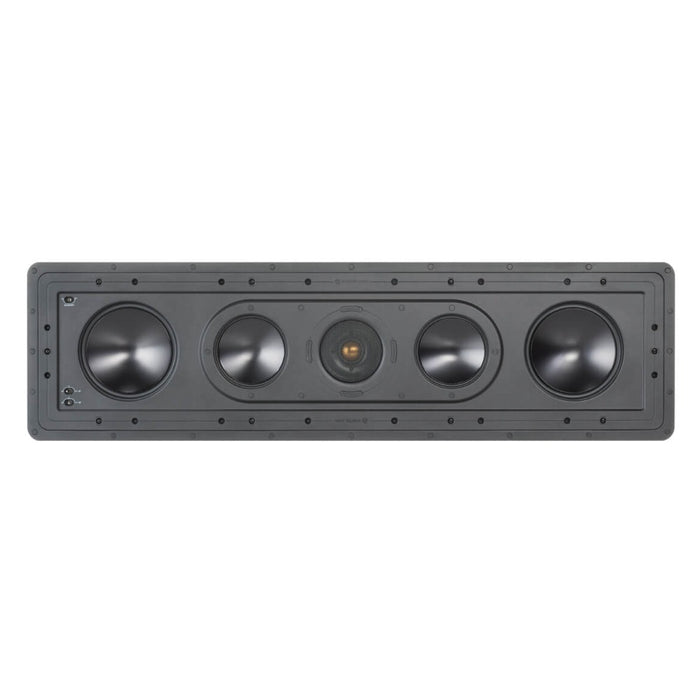

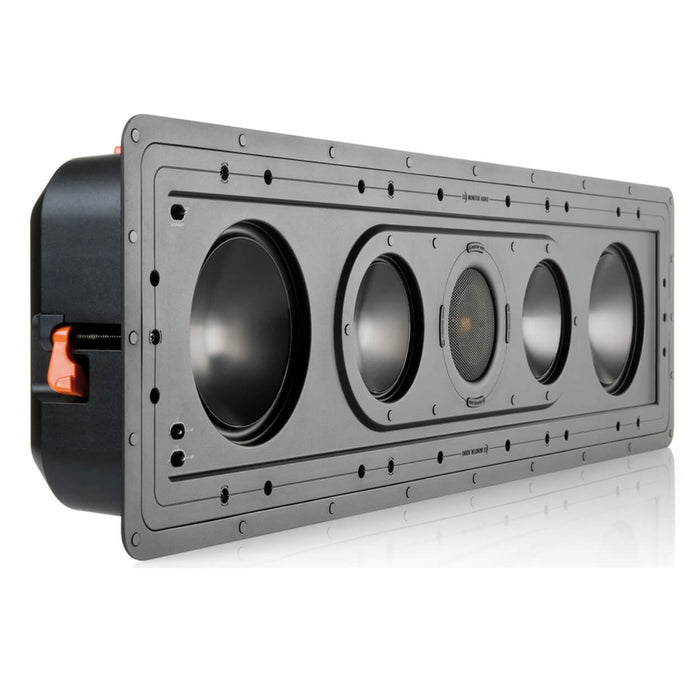

Monitor Audio CP-IW260X In Wall-Speaker

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

The CP-IW260X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material deployed in dual 6.5” bass drivers and twin 4” mids astride a gold dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.

Technology

Dual 4” C-CAM mid-range drivers – featuring underhung voice coil

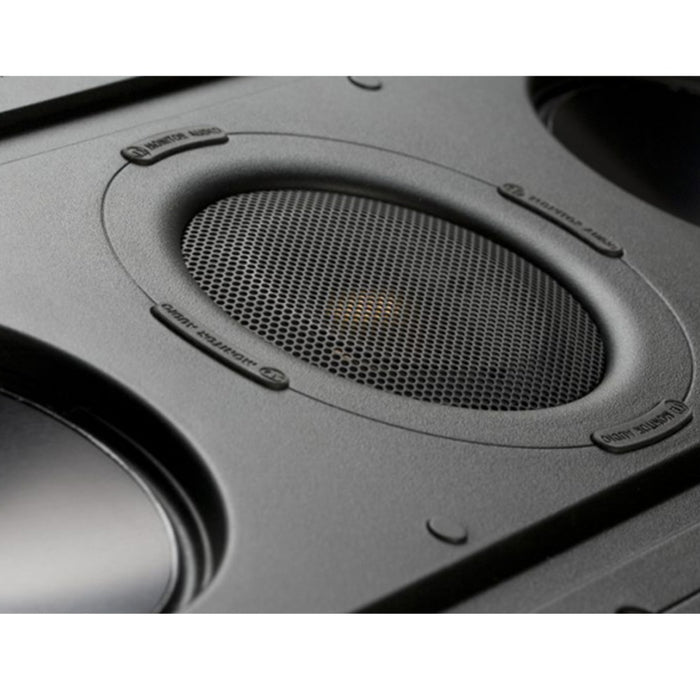

25mm (1”) C-CAM Gold Dome tweeter
Portrait or landscape orientation
Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
High overall efficiency and maximum SPL for powerful home theatre installations
High power handling
Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

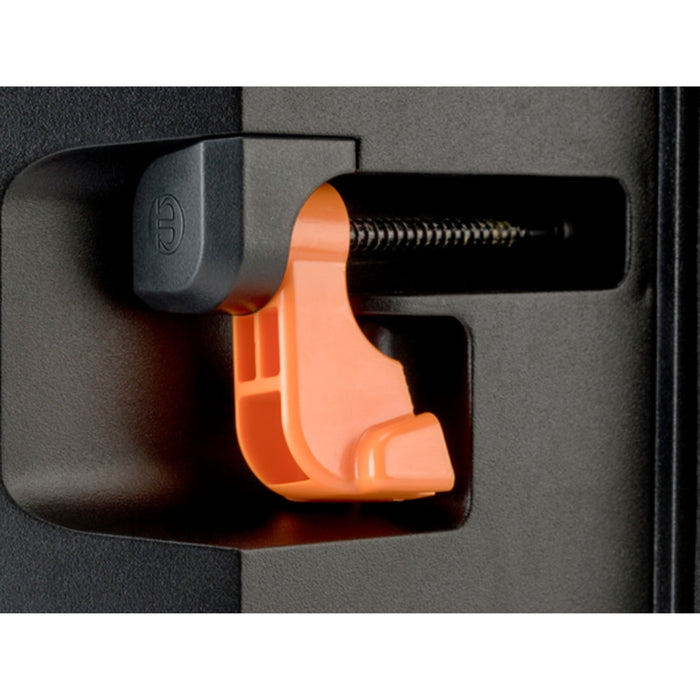

Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
Sold As a Single

Specifications

Frequency Response

50Hz - 30kHz (-6dB typical in room response)

Nominal Impedance

6Ω

Sensitivity (1W@1M)

89 dB

Maximum SPL

113.8 dBA

Power Handling (RMS)

150 W

Recommended Amplifier Requirements

60 - 150 W

Crossover Frequency

L.F - 500Hz @ 12dB/Octave M.F -500Hz @ 12dB/Octave. 3KHz @ 18dB/Octave H.F - 3KHz @ 18dB/Octave

Drive Unit Complement

2 x 6.5” C-CAM Bass drivers 2 x 4” C-CAM Mid-range drivers 1 x 25mm (1”) C-CAM Gold Dome tweeter

Adjustment Controls

Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D)

907 x 257 mm (35 3/4” x 10 1/8”)

Overall Depth (Including Grille)

102 mm (4”)

Cut-Out Dimensions

880 x 230 mm ( 34 21/32” x 9”)

Mounting Depth

96 mm (3 3/4” )

Fixing Type

10 x Tri-Grip® Dog leg fixings

Construction Material

Cast Polymer enclosure (RoHS2 Compliant)

Weight

11.98 kg (26lb 6oz)

Pre-Construction Bracket

WB12 Pre-Constructions Bracket (Green)
