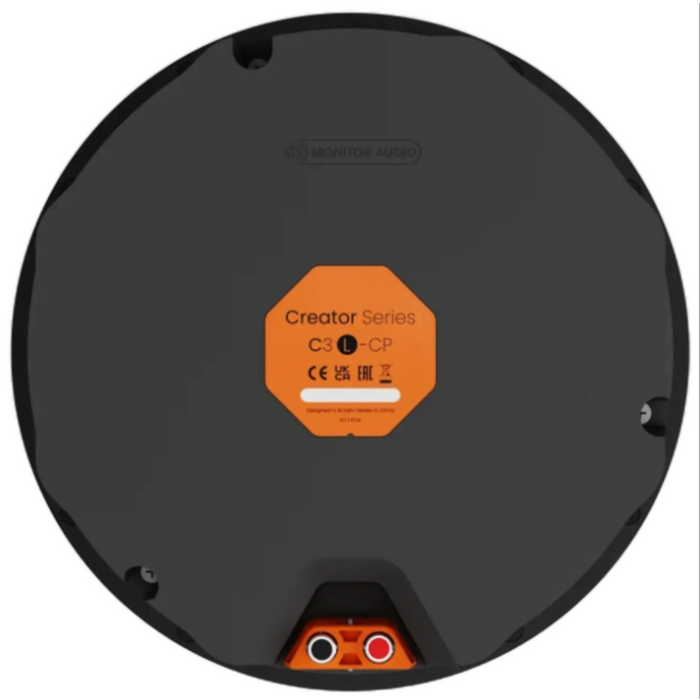

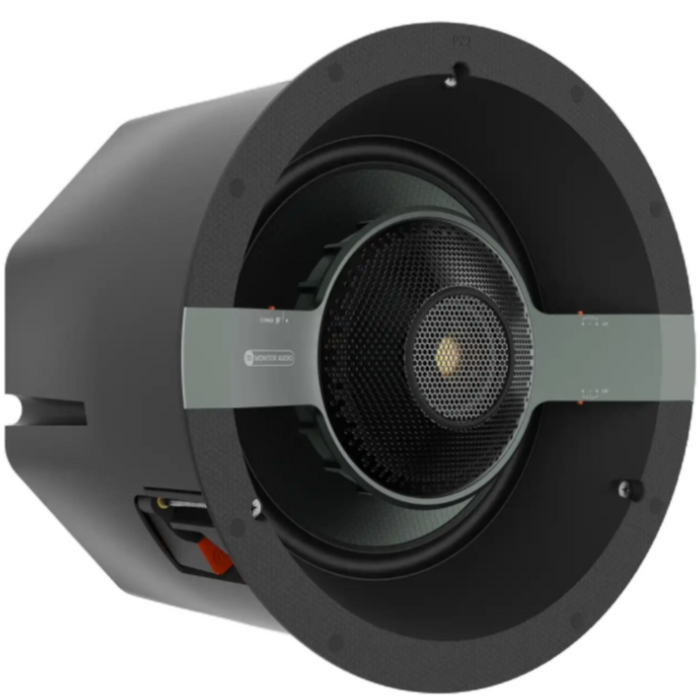

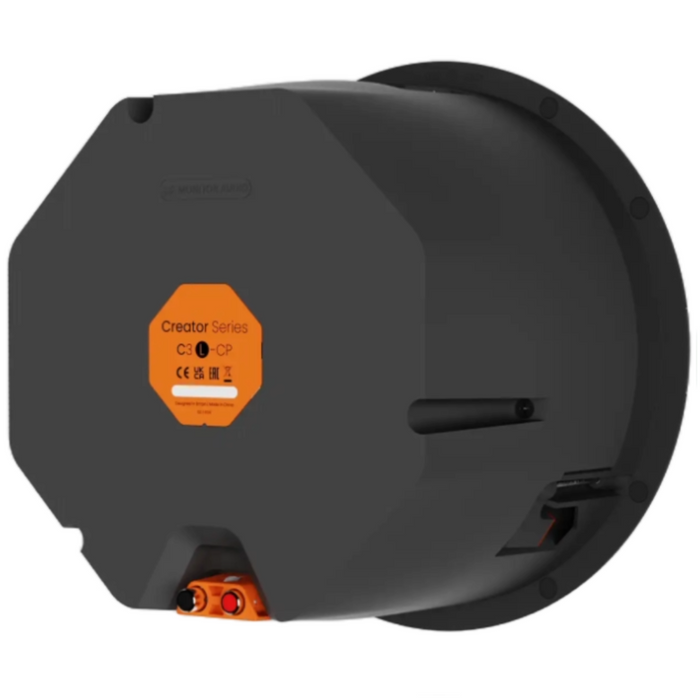

Monitor Audio Creator Series C3L-CP In-Ceiling Speaker

A high-performance range of medium and large in-ceiling speakers that have all the engineering qualities of Tier 2, but offer improved acoustic performance and further features for enhanced speaker placement freedom, such as boundary correction and mid/high-frequency cut/boost, plus leading-edge acoustic technologies.

British High-Fidelity Architectural Sound Redefined

The Creator Series re-writes the rules of custom installation. A smart, tiered range of high-performance, installer-friendly in-ceiling and in-wall loudspeakers that delivers better sound for customers, and enhanced flexibility and clarity for installers. The application of key Monitor Audio acoustic technologies more usually found in our premium standalone loudspeakers ensures lifelike, pristine sound, while innovative features and a comprehensive, clearly defined range make for hassle-free installation. If you thought you knew custom installation, think again; Creator Series redefines British high-fidelity architectural sound.

Features

• Three-way arrangement ​
• RDT III bass drivers​
• IDC II coaxial mid/tweeter drivers​ with UD Waveguide II​
• Controlled Performance​
• Tri-Grip II ​
• Quik-Link

Controlled Performance (CP)

Controlled Performance (CP) models are fitted with a fully sealed back box that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30dB. This range guarantees excellent audio quality and versatility, and offers superior sound isolation between rooms and floors.

Boundary EQ

All the Creator Series in-ceiling models perform exceptionally well in a variety of locations, including when close to secondary walls. However, as you move up through the tiers, the models feature enhanced technologies such as boundary correction and high and mid-frequency cut/boost that allows them to be placed in trickier locations such as corners. Because sound performance shouldn’t be compromised by placement.

Tri-Grip II

Tri-Grip II is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.

Quik-Link

Our new innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre-installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It’s that easy."

Specifications

- Drive Units Complement: 1 x 9” RDT III bass driver, 1 x 4” IDC II midrange driver, 1 x 25mm IDC II tweeter

- Nominal Impedance: 6 Ohm

-  Amplifier Requirement: 45 - 180 W

-  Continuous Power Handling: 120 W

-  Sensitivity (2.83v @ 1m): 89 dB

- Cut Out Size: Ø 248 mm

- Mounting Depth: 177.5 mm

- Dimensions (Ø x D) inc. grille: Ø 278 x 181 mm (Ø 10 15/16 x 7 1/8”)

- Weight: 5.7 kg (12 lb 10 oz)
