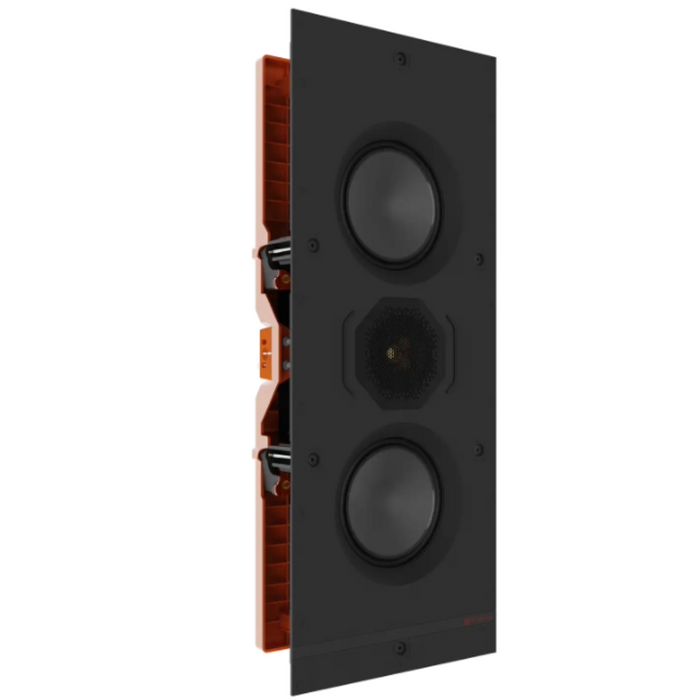

Monitor Audio Creator Series W1M In-Wall Speaker
A comprehensive range of medium in-wall speakers designed for cost-effective installations where product simplicity and solid acoustic performance is required.
In-Wall Medium Speaker
British High-Fidelity Architectural Sound Redefined
The Creator Series re-writes the rules of custom installation. A smart, tiered range of high-performance, installer-friendly in-ceiling and in-wall loudspeakers that delivers better sound for customers, and enhanced flexibility and clarity for installers.
The application of key Monitor Audio acoustic technologies more usually found in our premium standalone loudspeakers ensures lifelike, pristine sound, while innovative features and a comprehensive, clearly defined range make for hassle-free installation. If you thought you knew custom installation, think again; Creator Series redefines British high-fidelity architectural sound.
Features
- Two-way arrangement
- C-CAM mid-bass drivers
- C-CAM tweeter with UD Waveguide I
- Tri-Grip II
- Quik-Link
Tri-Grip II
Tri-Grip II is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.

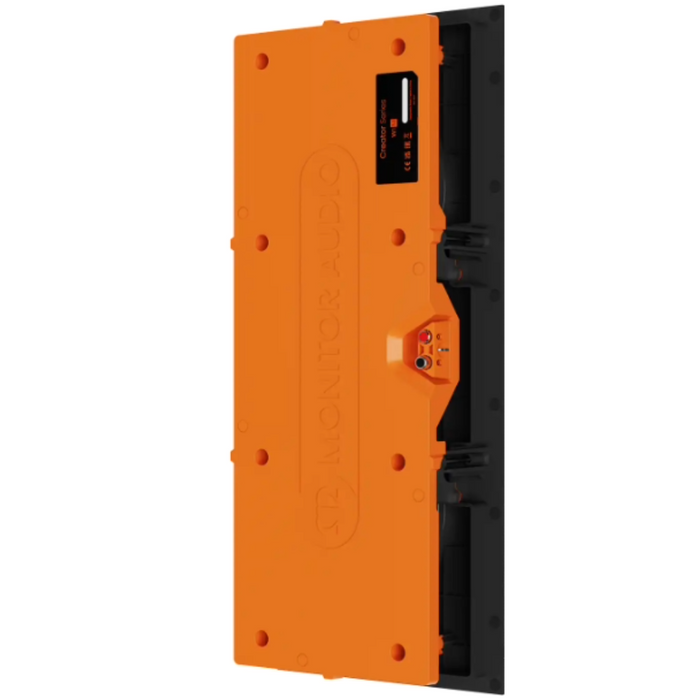

Quik-Link
Our new innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre-installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It’s that easy.
Specifications
- Drive Units Complement: 2 x 5” C-CAM bass driver, 1 x 25mm C-CAM tweeter
- Nominal Impedance: 6 Ohms
- Amplifier Requirement: 30 - 110 W
- Continuous Power Handling: 75 W
- Sensitivity (2.83v @ 1m): 85 dB
- Cut Out Size: 527 x 198 mm
- Mounting Depth: 85 mm
- Dimensions (Ø x D) inc. grille: 540 x 211 x 90 mm (21 1/4 x 8 5/16 x 3 9/16”)
- Weight: 3.4 kg (7 lb 8 oz)
