NAD PP 2E Phono Preamplifier

by NAD
5 Reviews
Original price $379.00 - Original price $379.00
Original price $379.00
$379.00
$379.00 - $379.00
Current price $379.00

NAD PP 2E Phono Preamplifier

CALL FOR AVAILABILITIES.

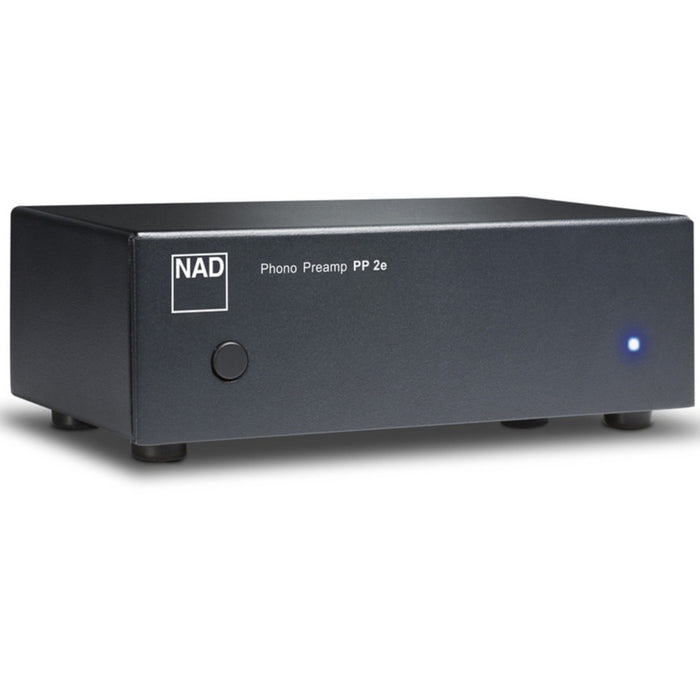

The PP 2e Phono Preamplifier offers superb performance in a clean and simple package. Perfect for the budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input selector provides different phono cartridge options. This ultimately allows the PP 2e to be paired with any turntable, giving consumers unlimited choice in building their personal system. The PP 2e is also incredibly easy-to-use and is guaranteed to bring years of enjoyment to any lover of vinyl LPs. The PP 2e’s Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use. Built to be the best companion to one’s turntable setup, the PP 2e breathes life back into the vinyl you love.

The PP 2e Phono Preamplifier offers superb performance in a clean and simple package for a very reasonable cost. Perfect for the budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input selector provides different phono cartridge options. Our PP 2e is incredibly easy-to-use and is certain to bring years of enjoyment to any lover of vinyl LPs. The PP 2e’s Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use.

Features

  • Low noise, wide band MM & MC design

  • Simple design with high performance

  • Separate, switchable inputs for MM & MC

  • Auto Power Down function, turns off when no signal present

  • External 24V DC power supply

  • Gold-plated input & output RCA sockets

  • Dimensions:135Wx49Hx72Dinmm

  • Finish: Black

Specifications

MC

  • Input Impedance (R and C)
  • 100 Ohm + 180pF
  • Gain at 1kHz
  • 60dB
  • Input Sensitivity (ref. 200mV output)
  • 0.3mV
  • Signal to Noise Ratio
  • 78dB (A weighted, with cartridge connected)
  • Input Overload (20Hz/1kHz/20kHz)
  • 0.8/9/84mV
  • Rated Distortion (THD 20Hz – 20kHz)
  • <0.03%
  • RIAA Response Accuracy
  • ±0.3dB

MM

  • Input Impedance (R and C)
  • 47 kilohm + 200pF
  • Gain at 1kHz
  • 35dB
  • Input sensitivity (ref. 200mV output)
  • 2.5mV
  • Signal to Noise Ratio
  • 80dB (A weighted, with cartridge connected)
  • Input overload (20Hz/1kHz/20kHz)
  • 10/102/950mV
  • Rated Distortion (THD 20Hz – 20kHz)
  • <0.03%
  • RIAA response accuracy
  • ±0.3dB

Line Out

  • Output Impedance
  • 100 Ohm
  • Maximum Output Level
  • 5.3V

General Specifications

  • AC Supply
  • External 23.5V DC
  • Dimensions excl. Power supply (W x H x D)
  • 135 x 49 x 72mm
    5 5/16 x 1 15/16 x 2 7/8″
