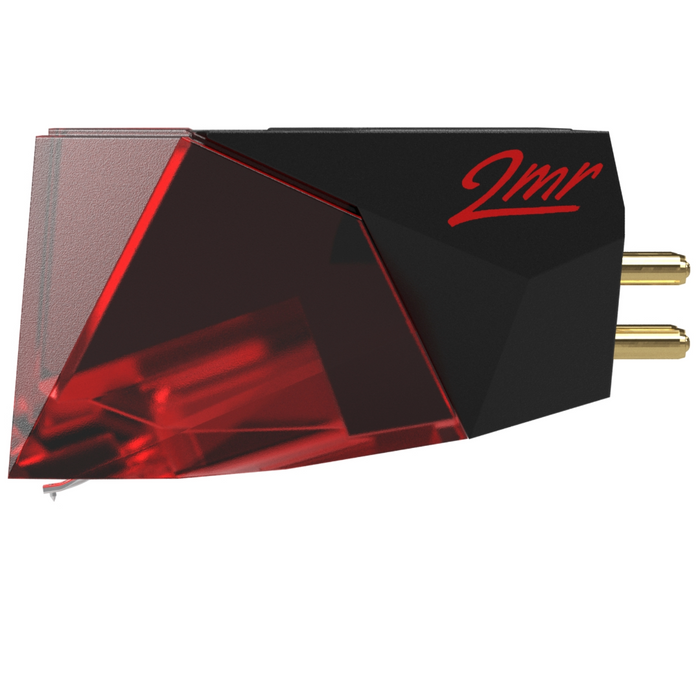

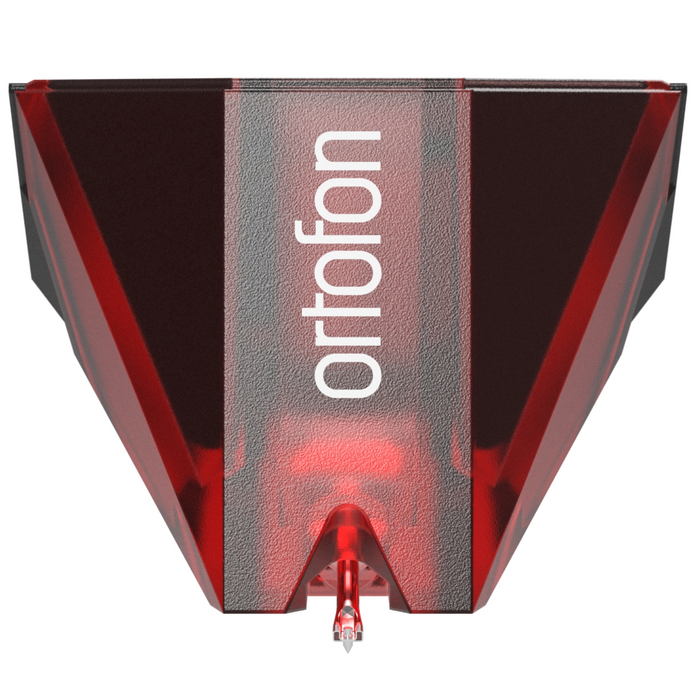

Ortofon 2MR Red Moving Magnet Cartridge
The Ortofon 2MR series is designed with a newly developed cartridge housing for optimized fitting on low-profile turntables. With its ultra-slim 3mm height reduction, seamless integration is guaranteed. The cartridge's slimline body eliminates the need for spacers or modifications, ensuring quick, easy mounting with just two screws.
Experience unmatched compatibility with all 2M styli and revel in the high-performance motor system featuring quad coils and split pole pins, exclusive to genuine Ortofon cartridges.
Accuracy level
With the 2MR Red you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry. The 2MR Red delivers an open, dynamic sound with a slight touch of warmth.
Compatibility
The Ortofon 2MR Red features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.
Premium and high-end low form factor cartridges for use on turntables like Rega
Newly developed low form factor cartridge housing within the famous 2M series:
- Slimline cartridge body - Effectively eliminates the need for tonearm spacers, shims or modifications
- 100% compatibility with the 2M styli - All Ortofon 2M styli fits on all 2MR cartridge models
- Standard half inch mounting - Quick and easy mounting on the tonearms with just two screws
- A complete series ranging from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250
2MR Red
- Elliptical diamond on an aluminium cantilever with a Premium Ortofon rubber damper
- Quad coil motor system with four copper coils and four split pole pins
- With the 2MR Red it is like taking a step into music itself.
Specifications
- Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
- Channel balance at 1 kHz - 1.5 dB
- Channel separation at 1 kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency response - 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force - 70 µm
- Compliance, dynamic, lateral - 20 µm/mN
- Stylus type - Elliptical
- Stylus tip radius - r/R 8/18 µm
- Tracking force range - 1.6-2.0 g (16-20 mN)
- Tracking force, recommended - 1.8 g (18 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 1.3 kOhm
- Internal inductance - 700 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 150-300 pF
- Cartridge colour, body/stylus - Black/Red
- 2MR cartridge weight - 6 g
- 2M and 2M Verso cartridges weight - 7.2 g
- 2M Premounted cartridge weight - 16.7 g
