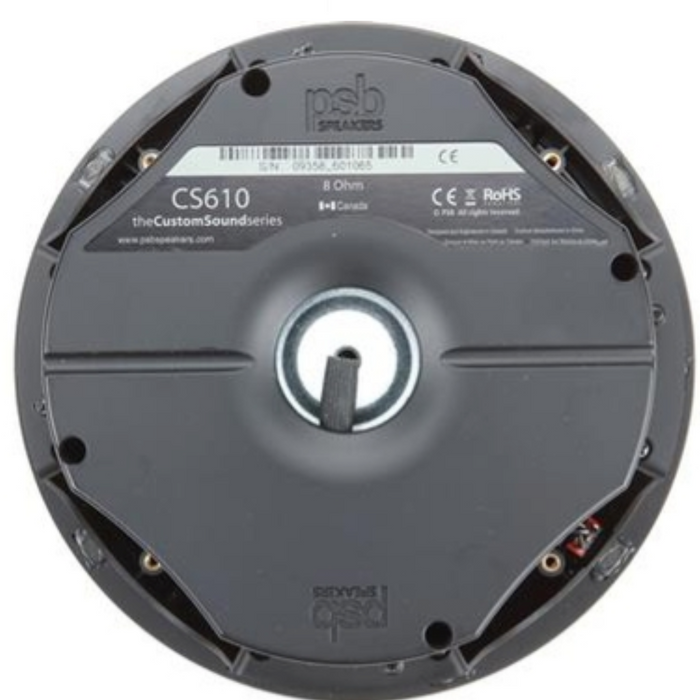

PSB CS 610 6 inch In-Ceiling Speaker
Enhance your home's audio system with the PSB CS 610 6 inch In-Ceiling Speaker. Designed with expert precision and quality, this speaker delivers crystal clear sound and exceptional performance. Its innovative design seamlessly blends into your ceiling, providing a sleek and modern look.
Elevate your listening experience with the PSB CS 610.
High-Performance In-Ceiling Speaker
Drawing from more than four decades of pioneering research in acoustics and loudspeaker design, this high-end architectural speaker offers musicality, sophistication and near-invisible design. It effortlessly establishes an enchanting ambiance even in larger spaces. With a sonic signature matching other PSB speakers, the CS610 seamlessly fits into home theatres or as the soundtrack of the connected home.
Effortless Installation

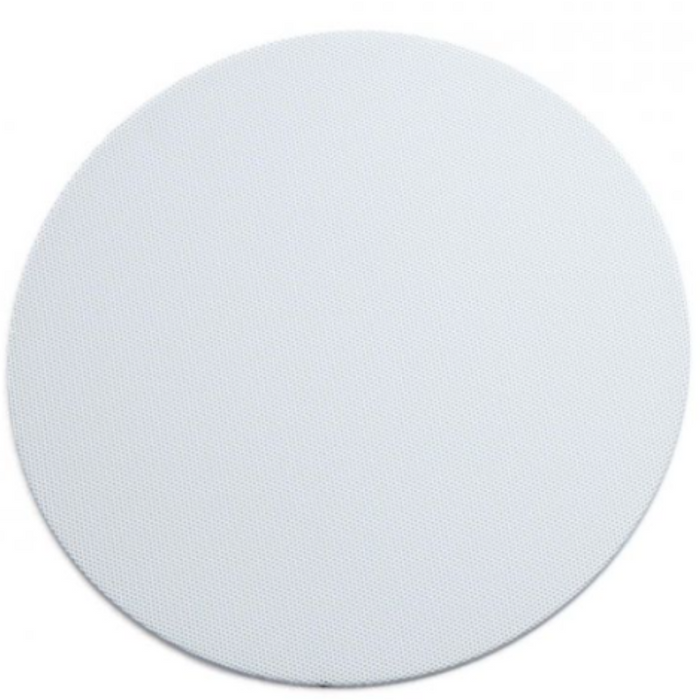

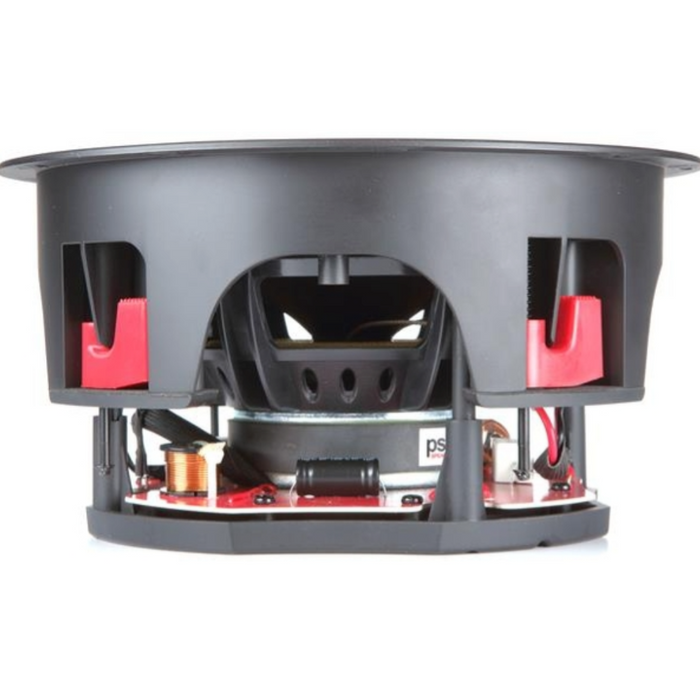

This series comprises three models, each equipped with frameless magnetic grilles featuring invisible scrims. Both round and square grilles are included, streamlining and minimizing your inventory needs. These models also incorporate an enhanced, user-friendly mounting system with sturdy doglegs, complete with cutting templates. Additionally, pre-construction brackets and backcans are readily available for added convenience.
Precision Audio Components
Featuring PSB's renowned carbon-filled polypropylene 6 1/2” woofer, this speaker delivers a warm and well-balanced sound. Thanks to its high-temperature voice coil, it boasts exceptional power handling capabilities, ensuring a captivating audio experience.
Enhanced Tweeter Design
The 3/4” aluminum dome tweeter, another proprietary PSB driver, is uniquely concentrically positioned and incorporates a meticulously engineered Wave Guide and ball-joint pivot mount assembly. This innovative design extends the tweeter's frequency range, achieving a seamless blend with the woofer in the crossover region. Moreover, the adjustable tweeter level allows you to fine-tune the upper frequency response to suit the acoustic characteristics of any room after installation, optimizing musical balance.
Specifications
Frequency Response
| On Axis @ 0° ±3dB |
50-20,000Hz |
Sensitivity
| Anechoic Chamber |
85dB |
| Listening Room |
87dB
|
Impedance
| Nominal |
6 Ohms |
| Minimum |
4 Ohms |
Input Power
| Recommended |
10 - 100 Watts |
Acoustic Design
| Tweeter (Nominal) |
3/4” (19mm) aluminium dome with ferrofluid Black anodized
|
| Woofer (Nominal) |
6 1/2” (165mm)
Carbon-filled polypropylene cone
Rubber surround
|
| EQ Adjustment |
Tweeter switch
|
| Design Type |
Open Back
|
Size (W x H x D)
| Mounting Depth |
4 1/2” (114mm)*
|
| Cutout Diameter |
8 3/8” (212mm)* |
| Grill Round |
9 7/16” (240mm)* |
| Grill Square |
9 7/16 x 9 7/16” (240mm x 240mm)* |
