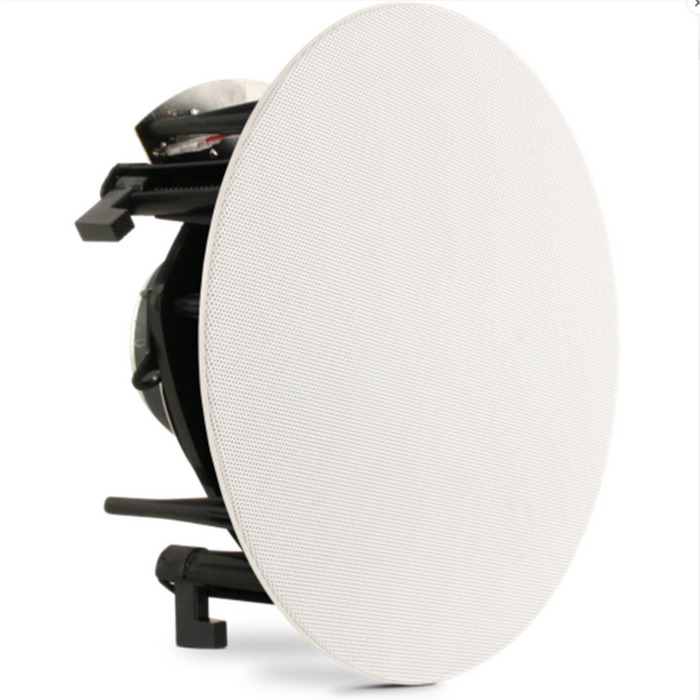

Revel C383 8 inch In Ceiling Speaker

Elevate your listening experience with the Revel C383.

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

C383 Highlights

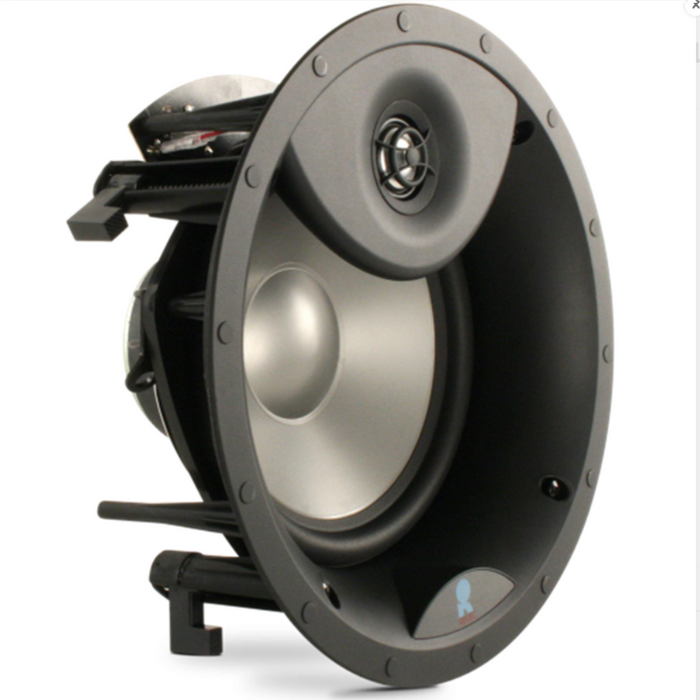

• Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
• 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

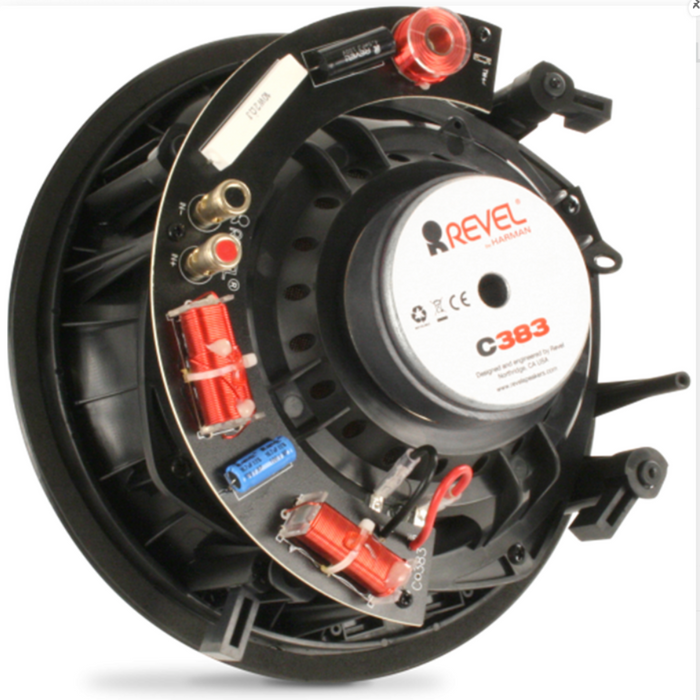

• High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
• Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall.
• Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

General Specifications

Audio Specifications

General Specifications

• High-Frequency Driver Components    1" aluminum dome swiveling tweeter with waveguide
• Low-Frequency Driver Components    8" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
• Recommended Amplifier Power    10 - 125 Watts RMS
• Mounting    C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
• Height    Cutout dimensions (dia.) 9.6" (24.4 cm) Square grille finished Width 10.7" (27.2 cm)
• Width    Square grille finished Width 10.7" (27.2 cm)
• Depth    Mounting depth 5.2" (13.2 cm)
• Weight    2.1 lb (1 kg) / Shipping weight 3.1 lb (1.4 kg)
• Features    Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm)

Audio Specifications

• High-Frequency Driver Components    1" aluminum dome swiveling tweeter with waveguide
• Low-Frequency Driver Components    8" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
• Recommended Amplifier Power    10 - 125 Watts RMS
• Mounting    C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
• Height    Cutout dimensions (dia.) 9.6" (24.4 cm) Square grille finished Width 10.7" (27.2 cm)
• Width    Square grille finished Width 10.7" (27.2 cm)
• Depth    Mounting depth 5.2" (13.2 cm)
• Weight    2.1 lb (1 kg) / Shipping weight 3.1 lb (1.4 kg)
• Features    Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm)
