Limited stock available. More stock arriving January 2025.
Chest-thumping slam and low frequency extension below the threshold of human hearing, with refined musicality – a level of subwoofer performance not seen at this price before. The SB-4000 subwoofer’s sophisticated DSP amplifier, innovative driver and a sealed box design master room gain and command a space with deeper bass and higher output levels than what is typically possible from a subwoofer of its size. An ideal option for reference quality bass in audiophile music or home theater systems, the SB-4000 sets all performance benchmarks for a subwoofer and leaves larger and more expensive subs trembling in its wake.
Specs and Features
Frequency Response / Acoustic Data:
- 19-310Hz ± 3 dB
- Roll-off slope specifically optimised to take maximum advantage of available room gain
- 2-meter ground plane away from reflective structures (quasi-anechoic).
Subwoofer Specs:

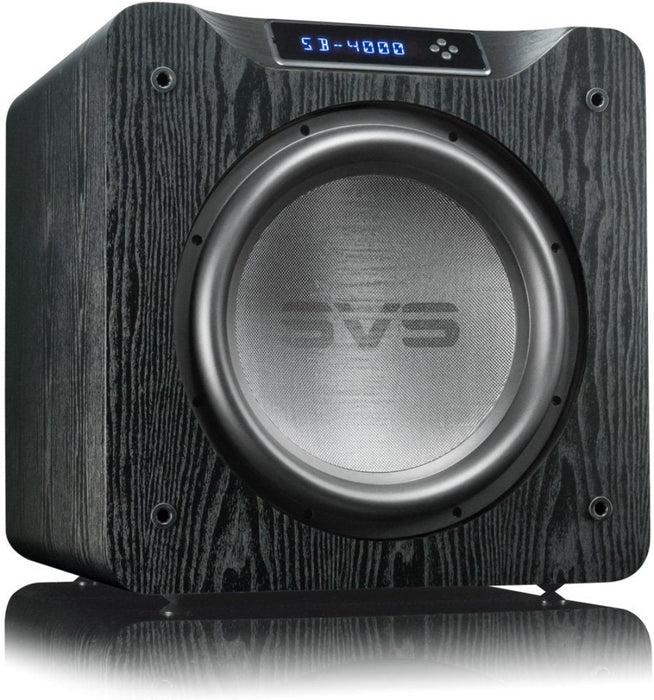

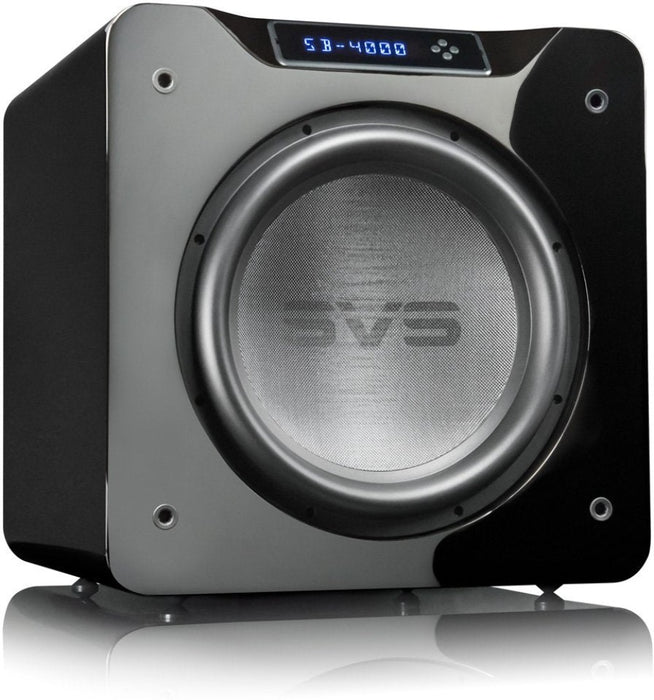

- Premium Black Ash and Piano Gloss Black finish options

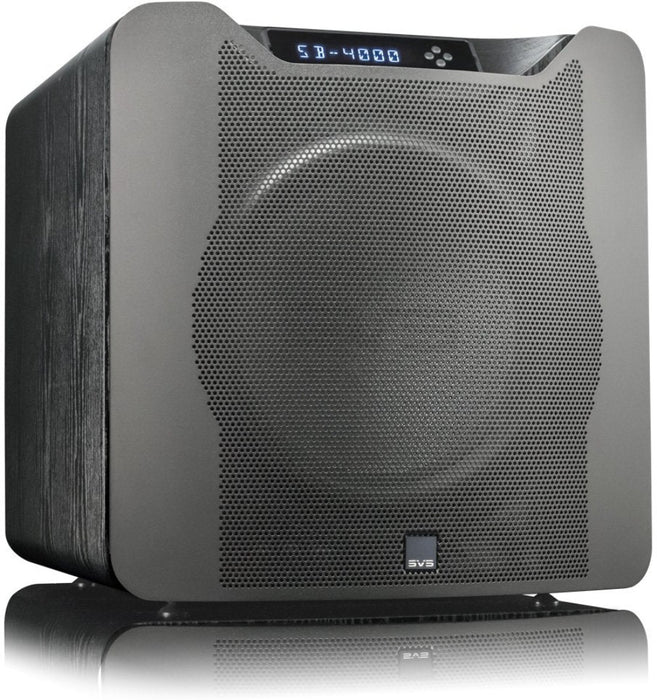

- Protective non-resonant steel mesh grille
- Front-firing 13.5" driver
- Rear-mounted amplifier
- Screw-in rubber feet
- Robust Medium Density Fiberboard(MDF) cabinet construction
- Cabinet Dimensions (without grille): 18.3” (465mm) H X 17.8” (453mm) W X 18.6” (471.3mm) D
- Cabinet Dimensions (with grille): 18.3” (465mm) H X 17.8” (453mm) W X 20.9” (530mm) D
- Shipped Dimensions: 23.5” (598mm) H X 23.5” (598mm) W X 28” (712mm) D
- Weight (unboxed): 102.3 lbs. (46.4 kg)
- Shipped Weight: 117.8lbs (53.45kg)
Driver Specs:
- High-performance SVS 4000 Series Subwoofer Driver - optimized for sealed cabinet design.
- Proprietary 13.5” Driver with finely tuned Overhung Motor Configuration
- 43lb (19.5kg) pound Woofer with 37.7lb (17.1kg) pounds for the motor
- Overhung 52mm Xmax, 76.2mm Xmech precision aligned excursion
- 8-layer aluminum flat wire edge wound 3” voice coil for ultra-low distortion, efficient heat dissipation, exceptional linearity and nearly zero power compression.
- Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.
- All-new High density FEA-optimized cast aluminum basket provides unequaled levels of rigidity, tensile strength, and energy transference available from a subwoofer.
- Dual 24-strand copper and Nomex composite high-temperature leads woven through the suspension provide a pristine electrical connection from the amplifier to the voice coil.
- Premium glass fiber laminated dustcap and reinforced and vented paper-composite cone sub-structure ensure a light, ridged, and neutral radiating surface.
- Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes.
- Extreme oversized low carbon vented steel U-yoke and top plate provide superior cooling and improved magnetics for maximum performance and efficiency.
- Copper ring shorting sleeve reduces gap induction and distortion, enhances thermal conductivity
- Nickle-plated high-tension spring terminals
- Proprietary injection molded gasket and parabolic SBR extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control
- Low carbon 1008 steel components with black electrophoresis plating
Included Accessories:
- Protective non-resonant steel mesh grill

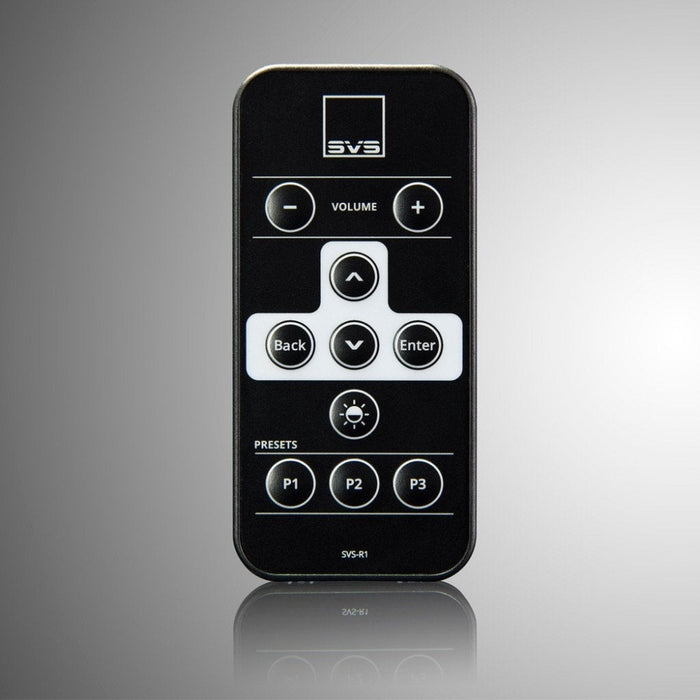

- IR remote control
- Elastomer feet included
- Extra heavy-duty, high current 6' power cord
- SB-4000 Subwoofer Manual
- Quick Start Guide
